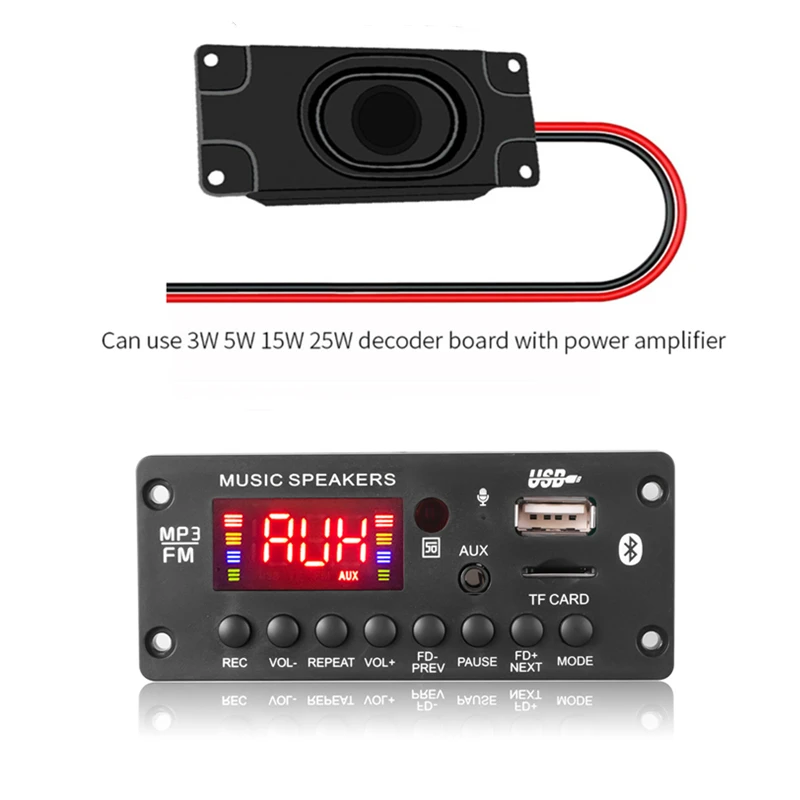

2*25W Amplifier DC 7-15V

Model: JQ-D010BT (Power: 2*25W)

Bluetooth version 5.0

Power amplifier ICCS8673E, power: 2*25W

Bluetooth calling function

recording function

Music format: MP3/WMA/WAV/FLAC/APE lossless format music

Radio FM frequency: 87.5—107.5 MHZ

Folder switching function

Support function introduction: support MP3 / USB / TF / LINE IN / FM / BLUETOOTH / remote control connection / DC 7V-15V

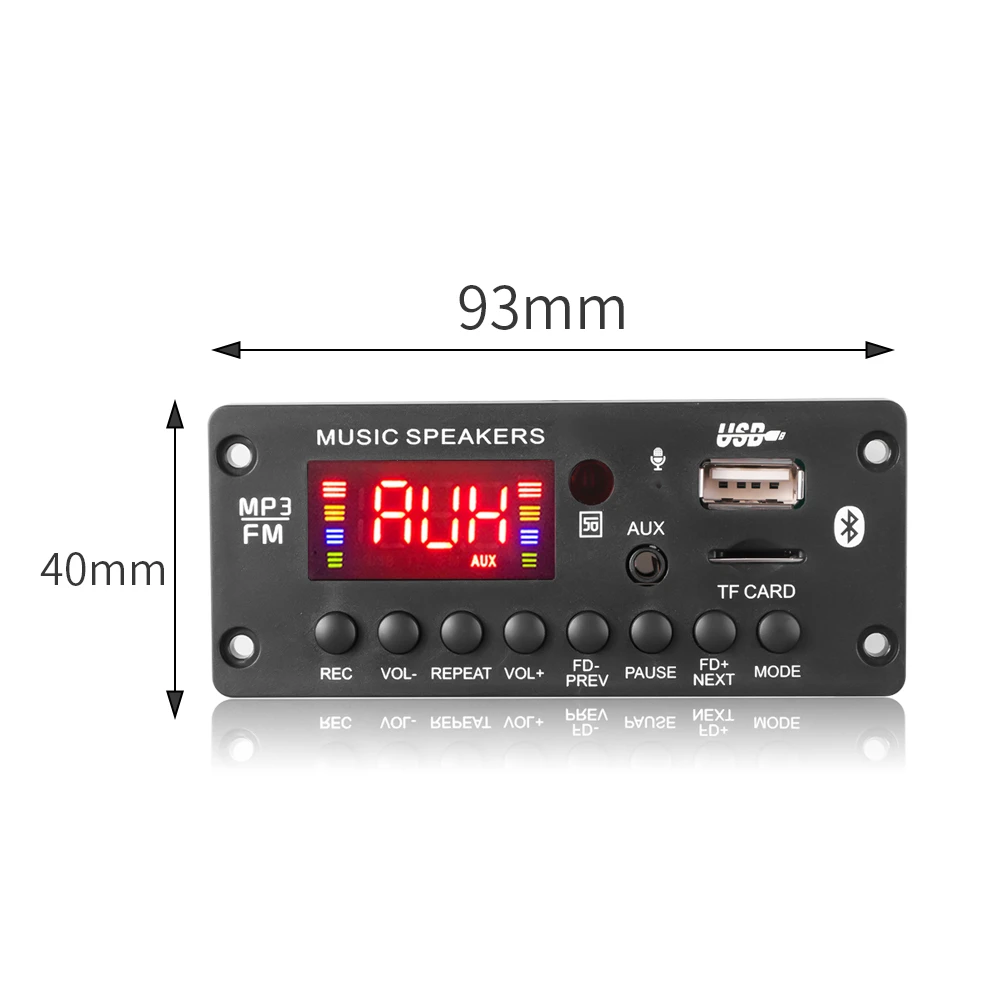

About the structure: Panel size: length 94 * width 40MM, the panel is surrounded by screw holes, the depth of the panel is 20MM


1. Button and interface function

1. Display screen: digital color screen display, showing red;

2. IR: infrared receiving module;

3. AUX interface: audio input interface;

4, MIC: support call and recording function

5. TF card slot: connect SD memory card (maximum support 32GB);

6, USB interface: connect U disk (maximum support 32GB);

7. REC: Long press the REC button to start recording, press the REC button again to cancel the recording function and play the recorded file; when recording, you need to connect a storage device, such as a U disk or TF card;

8. VOL-: volume decrease;

9. REPEAT: Press the single loop function once, press it again to cancel the single loop, and play it in sequence;

10. VOL+: volume increase;

11. PREV: short press to select the previous song; long press to rewind, double-click to switch to the previous folder;

12. PLAY/PAUSE: short press is to switch between pause and play; long press is to radio FM automatic station;

13. NEXT: short press to select the next song; long press to fast forward, double click to switch to the next folder;

14. MODE: Switch between USB / TF / FM / AUX / BLUETOOTH;

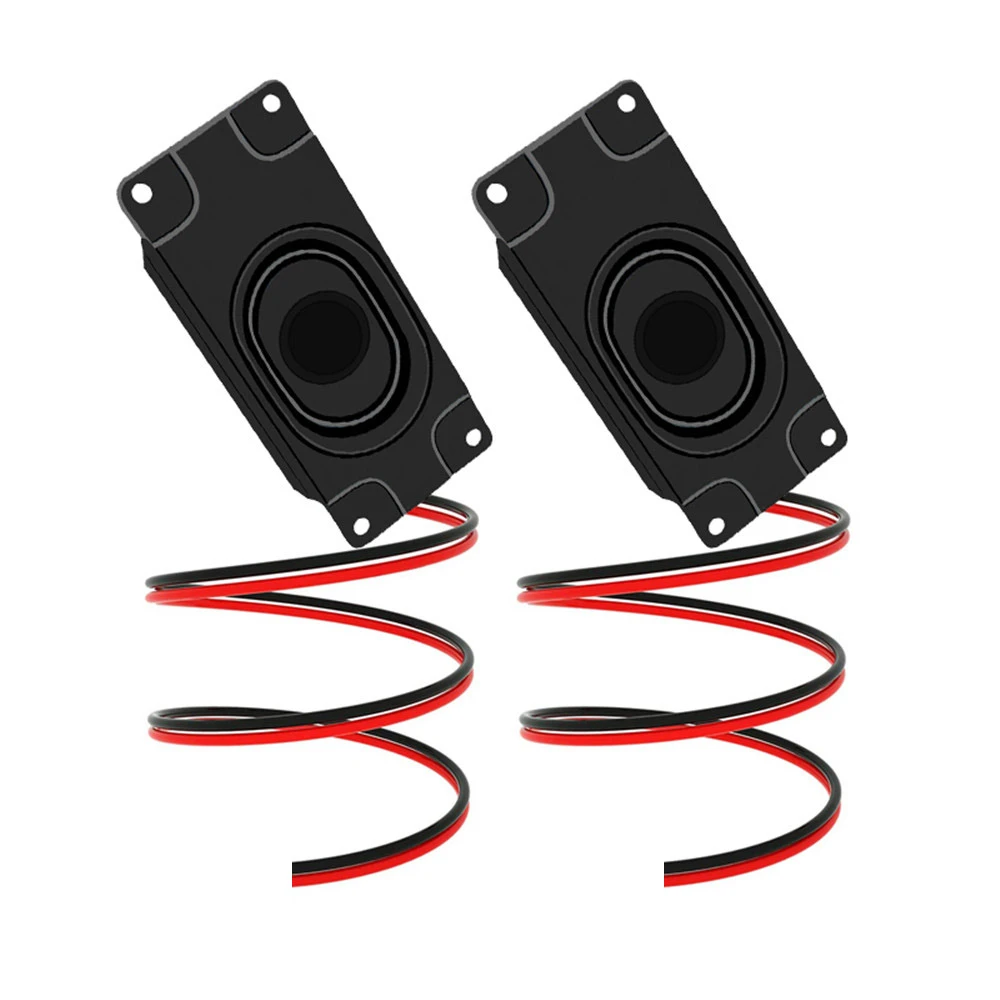

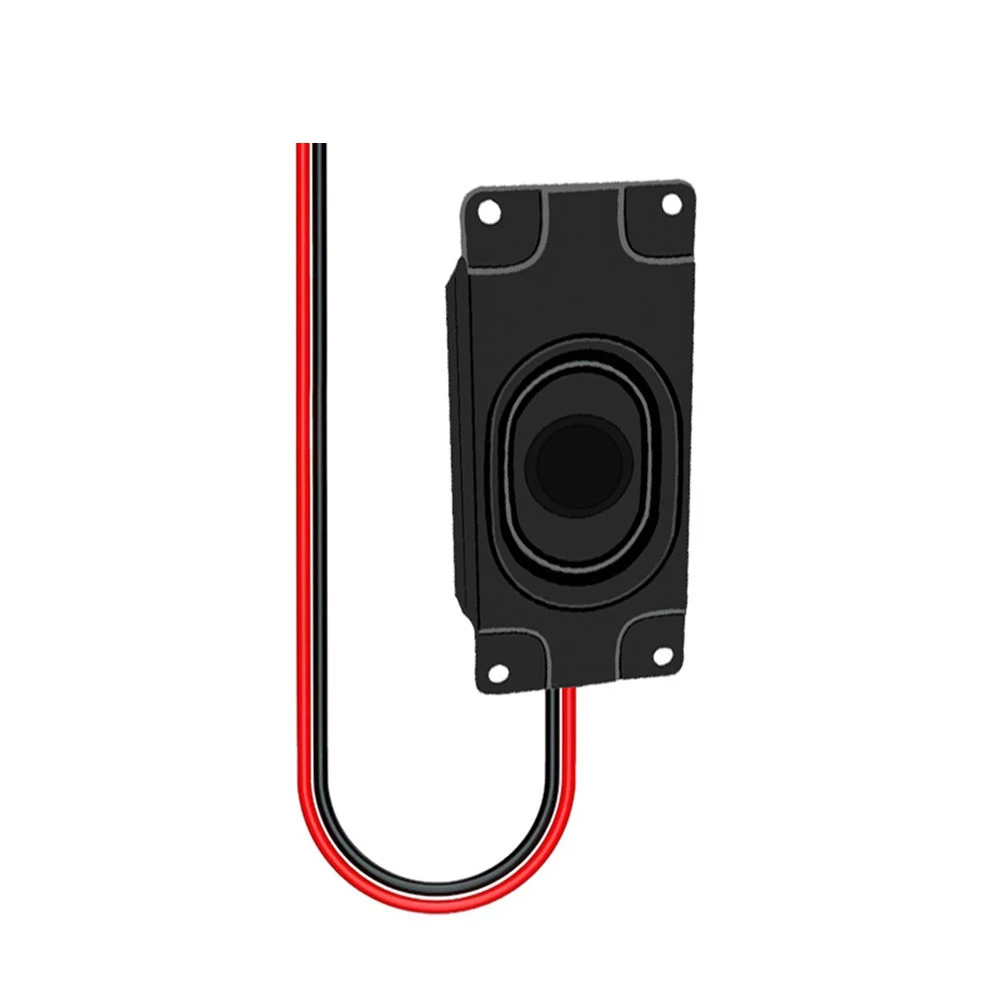

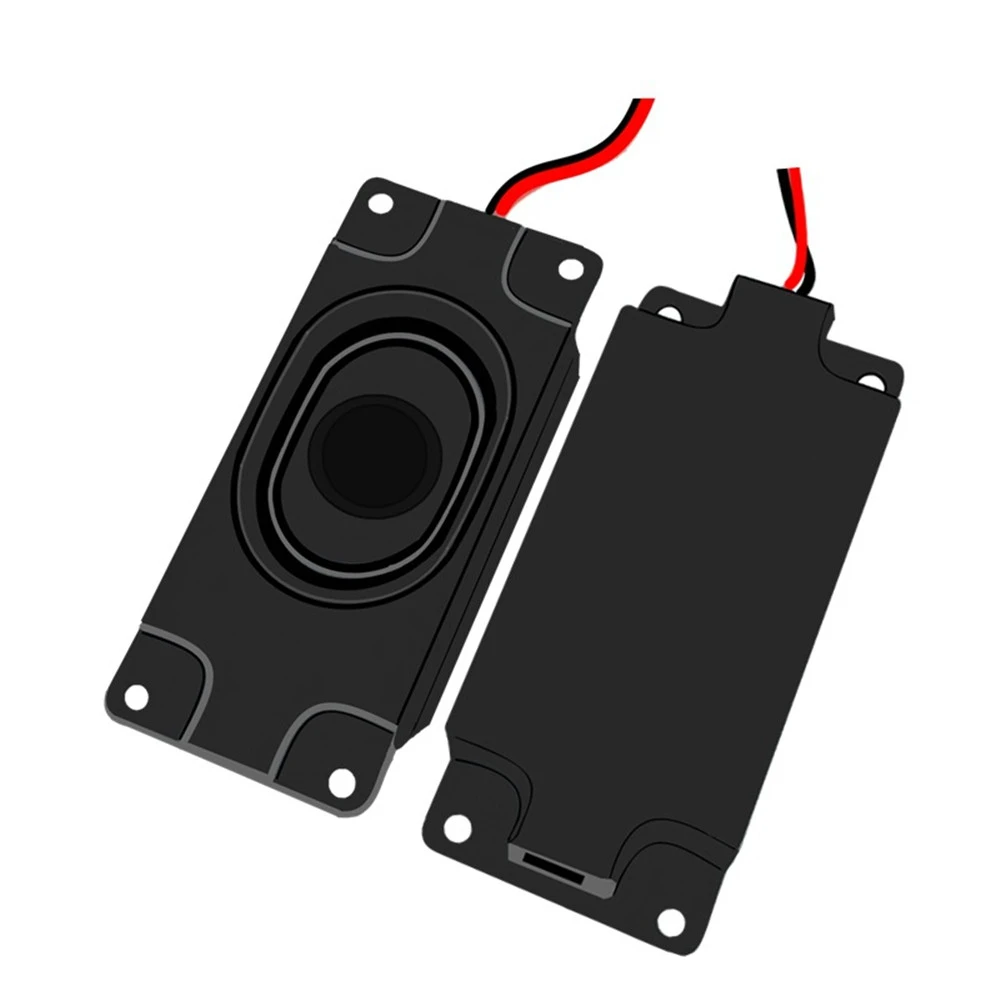

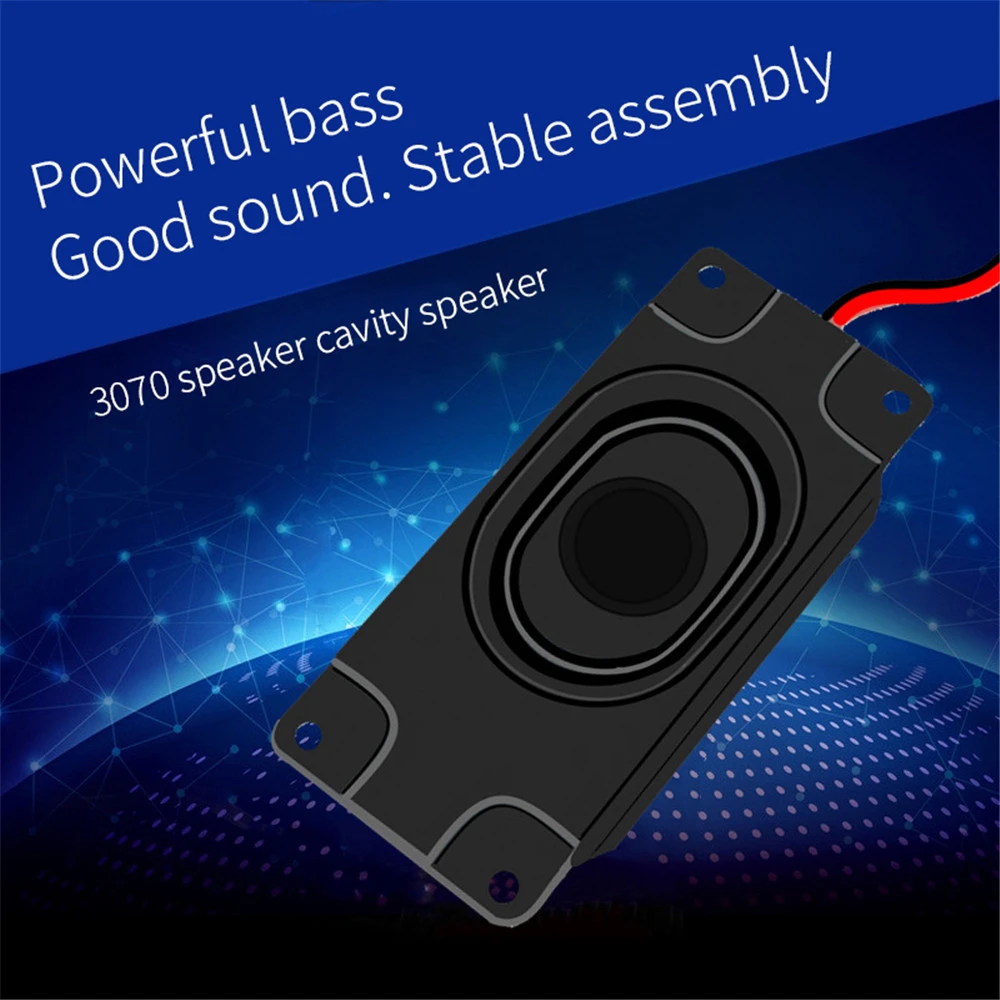

3070 Speaker

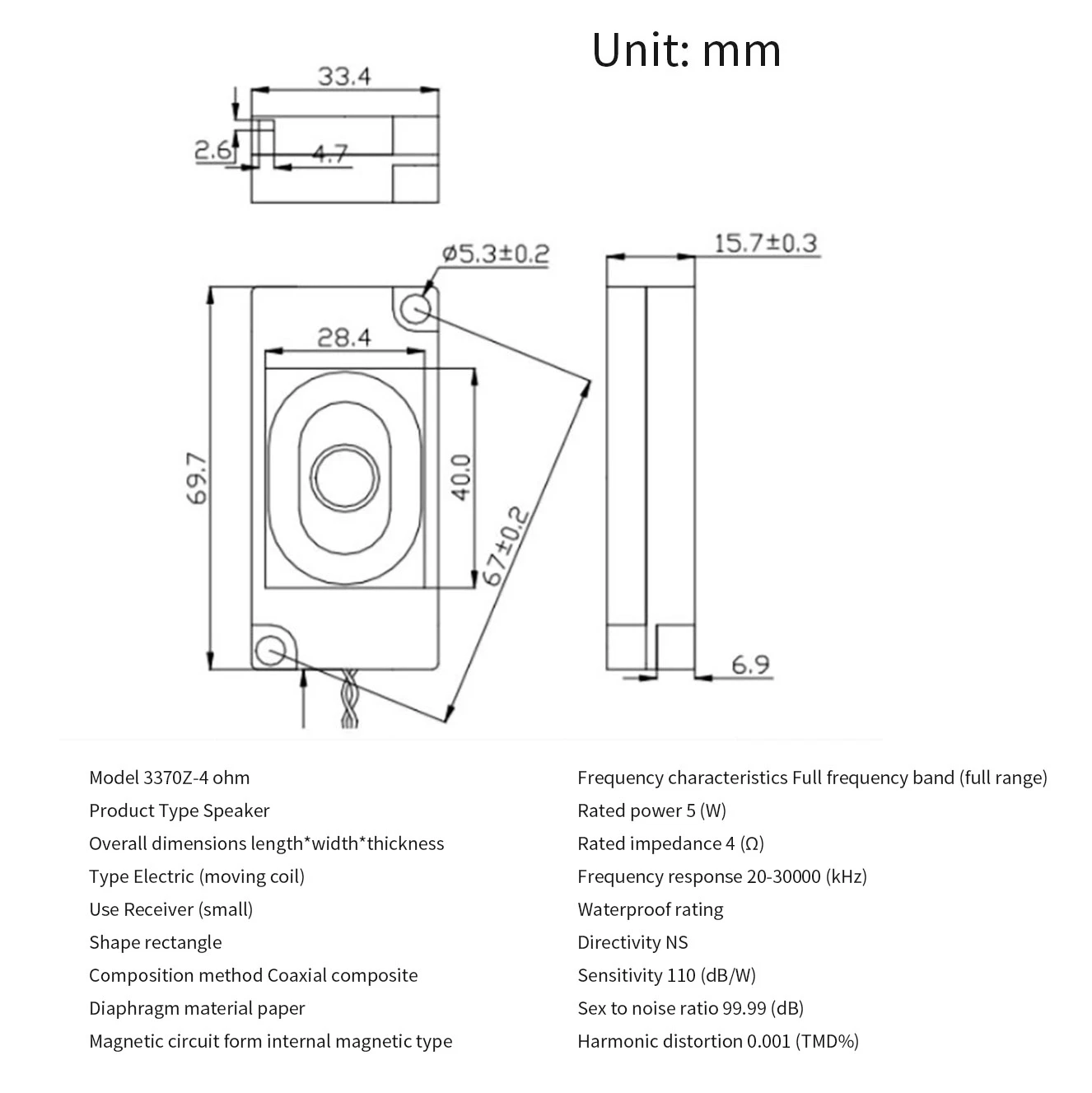

Model 3370Z-4 ohm

Cable length: 380mm

Product Type Speaker

Overall dimensions length*width*thickness

Type Electric (moving coil)

Use Receiver (small)

Shape rectangle

Composition method Coaxial composite

Diaphragm material paper

Magnetic circuit form internal magnetic type

Frequency characteristics Full frequency band (full range)

Rated power 5 (W)

Rated impedance 4 (Ω)

Frequency response 20-30000 (kHz)

Waterproof rating

Directivity NS

Sensitivity 110 (dB/W)

Sex to noise ratio 99.99 (dB)

Harmonic distortion 0.001 (TMD%)







Details
DAC AB5362B
Supports EBook Reading No
Model Number 50W Bluetooth 5.0 MP3 Decoder Board
Have Speakers or not Yes
Screen Yes
Certification CE
Supports FM Yes
Battery Specification External Power
Storage Type Flash Memory
Battery Life > 20 hours
Brand Name kebidu
Signal Noise Ratio ≥89dB
Display Size None
Supports Recording Function Yes
Origin Mainland China
Dimensions (WxHxD) -
Feature 1 Support folder playback
Feature 2 Support call
Balanced Out No
Operation mode Touch Tone
Power Supply DC 7V-15V
Package No
Body Material Plastic
feature 8 Power 50W (2*25W)
feature 9 Recording
Function Voice Recorder,FM Radio,bluetooth,Build in Speaker
feature 10 bluetooth amplifier
feature 11 amplifier bluetooth
feature 12 amplifier usb
feature 13 usb player board
feature 14 decoder board bluetooth
feature 15 recording folder
Audio Format Support MP3, WAV,FLAC,ape,WMA
feature 16 recording support folder amplifier
External Memory Yes
feature 17 usb fm call folder
feature 18 decoder board bluetooth folder
Battery not include
Wifi No
Bluetooth Yes
DSP AB5362B
Feature 3 Support power off memory
Feature 5 Folder switching function
Feature 6 Support song format MP3 /WMA / WAV / APE / FLAC
Feature 7 Bluetooth 5.0
Feature 19 usb fm call recording amplifier
Feature 20 mp3 bluetooth fm amplifier
Feature 21 recording support amplifier
Feature 22 mp3 usb fm bluetooth board
Feature 23 fm usb bluetooth mp3 player
Style
Style Pure Audio MP3
