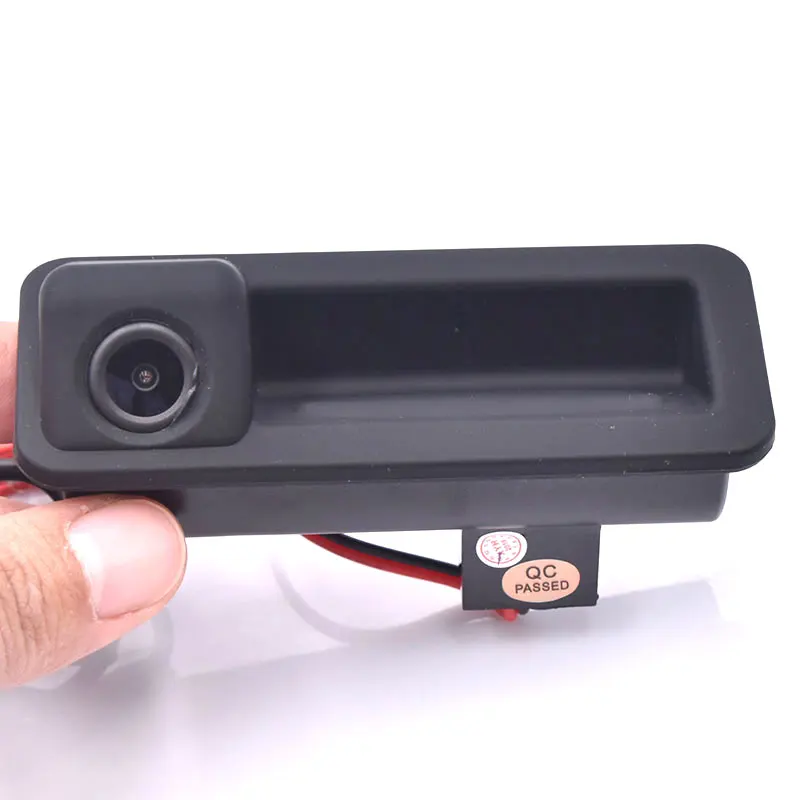

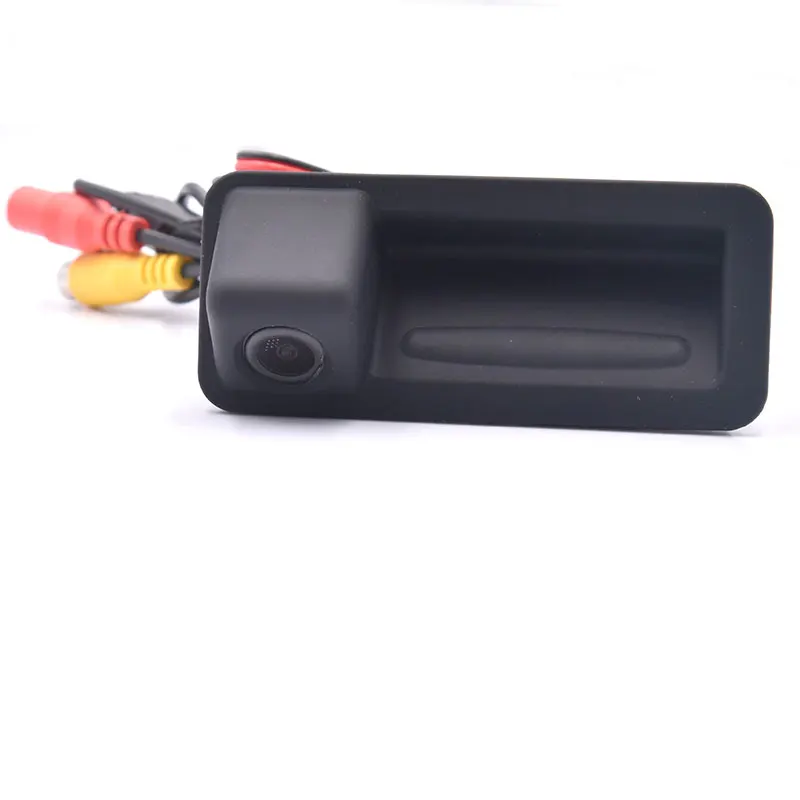

Waterproof HD Back Up Camera for Land Rover Range Freelander 2 For Ford Kuga Smax 2012 Cmax 2007 2C Mondeo MK2 MK4

Specifications:

Effective Pixels: PAL 512(H)X582(V); NTSC 512(H)X492(V)

Horizontal Resolution: 480 TVL

Minimum Illumination: 0.1Lux

Lens Angle: 150 degree

Synchronization: Internal synchronization

Signal to noise ratio: >48db

Signal System: PAL / NTSC

Electronic Shutter: Auto

Video Output: RCA interface, 1.0Vp-p, 75Ohm

White Balance: Auto

Backlight Compensation: Auto

Power: DC 12V

How to use:

Mount the camera at the back of the car (on the license plate back window or other suitable places)

Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative.

Connect the video cable of the camera to the extension cord.

Connect the extension cord to your car monitor.

You will see the images when your car is in reverse shift.

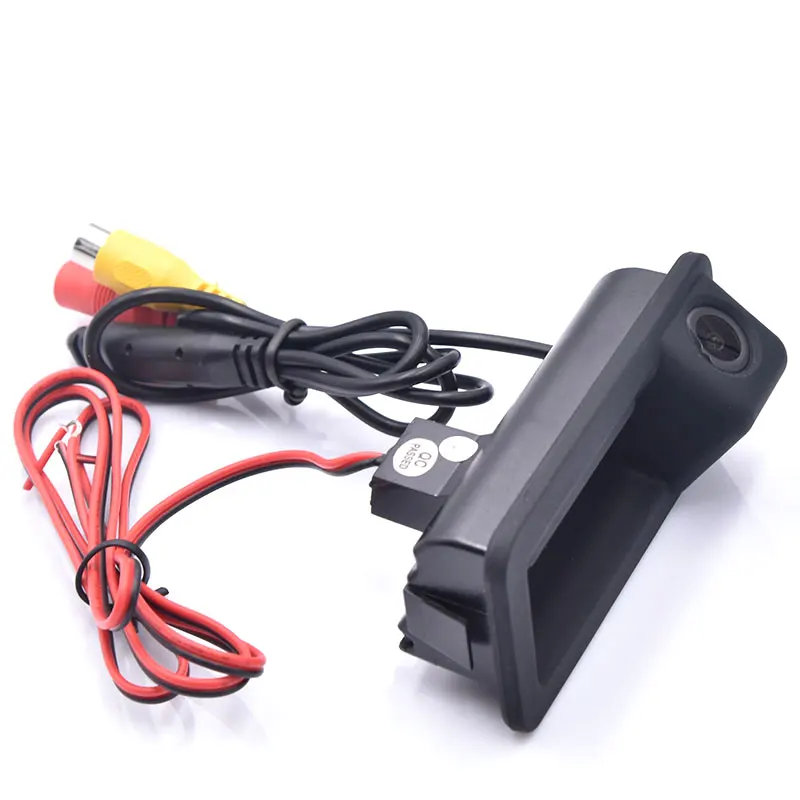

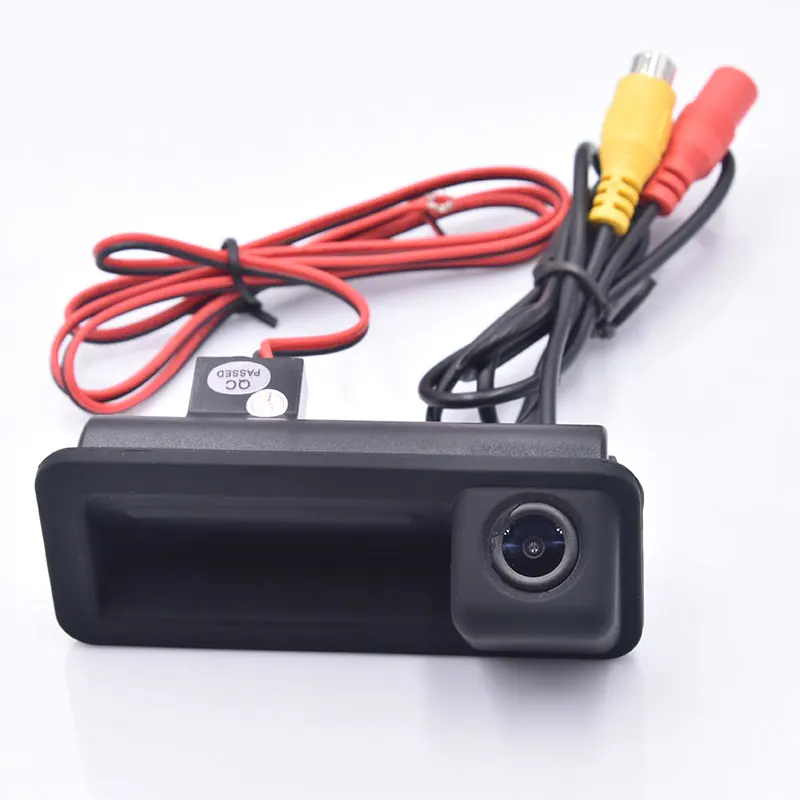

1. Car Rear Camera

2. 6M video cable

3. Power Cable

4. Manual
