Car Vehicle Rearview Camera For Audi A3 A4 A6 A8 Q5 Q7 A6L Backup Review Parking Reversing Cam Rear View Waterproof Night Vision
Car Vehicle Rearview Camera For Audi A3 A4 A6 A8 Q5 Q7 A6L Backup Review Parking Reversing Cam Rear View Waterproof Night Vision
Specifications
- High definition
- Car rear view camera
- Color night vision
- Wateproof
- Shock-proof
- Wide viewing angle
- Different chips to choose(MT9V136/OV7950/PC1030/PC1089K)
- Environmental & Durable
- 1-year warranty to every customer
- OEM/ODM
| Image Sensor | Color CMOS PC1030 | Color CCD PC3030 | Color MT 9V136 | Color PC1089K |
| TV System | NTSC | NTSC | NTSC | NTSC |
| Effective Pixels | 648*488Pixels | 728(H)*488(V) | 720*576/480Pixels | 928(H)*500(V) |
| Horizontal resolution | 480TVL | 500TVL | 500TVL | 520TVL |
| Sening area | 4.08mm*3.12mm | 3.584mm*2.688mm | 3.584mm*2.688mm | 3.584mm*2.688mm |
| Shutter speed | 1/60-1/5000 | 1/60-1/20000 | 1-1/10000 | 1-1/10000 |
| Minimum Illumination | 0.1lUX/F=1.2(OLux with ON | 0.1Lux/F=1.2(Olux with ON) | 0.01Lux/F=1.2(OLux with OR ON) | 0.01Lux/F=1.2(Olux with OR ON) |
| Video output | 1.0vP-Pat 75 ohm | 1.0vP-Pat 75 ohm | 1.0vP-Pat 75 ohm | 1.0vP-Pat 75 ohm |
| Power Supply | DC12V | DC12V | DC12V | DC12V |
| Operating temperature | -20C~75C,RH 95%MAX | -20C~75C,RH 95% MAX | -20C~75C,RH 95% MAX | -20C-75C,RH 95% MAX |
| Storage temperature | -40C-85C,RH 95% MAX | -40C-85C,RH 95% MAX | -40C-85C,RH 95% MAX | -40C-85C,RH 95% MAX |
| Lens angle | 170 | 170 | 170 | 170 |
| Waterproof | IP69K | IP69K | IP69K | IP69K |
| White Balance | auto | auto | auto | auto |
Fit:
for audi A3 2004-2013
for audi A4 2004-2013
for audi A5 2004-2013
for audi A6 2004-2013
for audi A8 2004-2013
for audi Q7 2003-2009
for audi S4 2003-2009
for audi RS4 2006-2008
for audi S5 2006-2008
for audi Cabrio 2003-2009
Package included

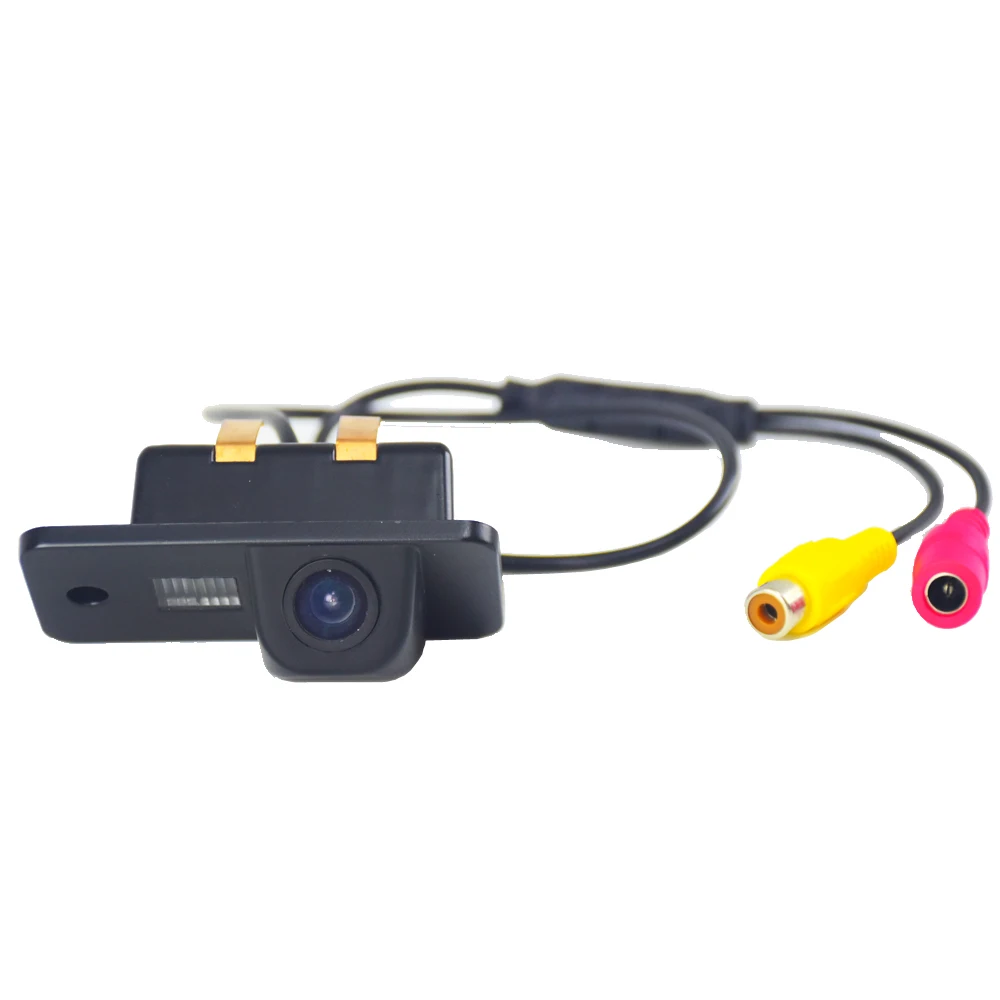

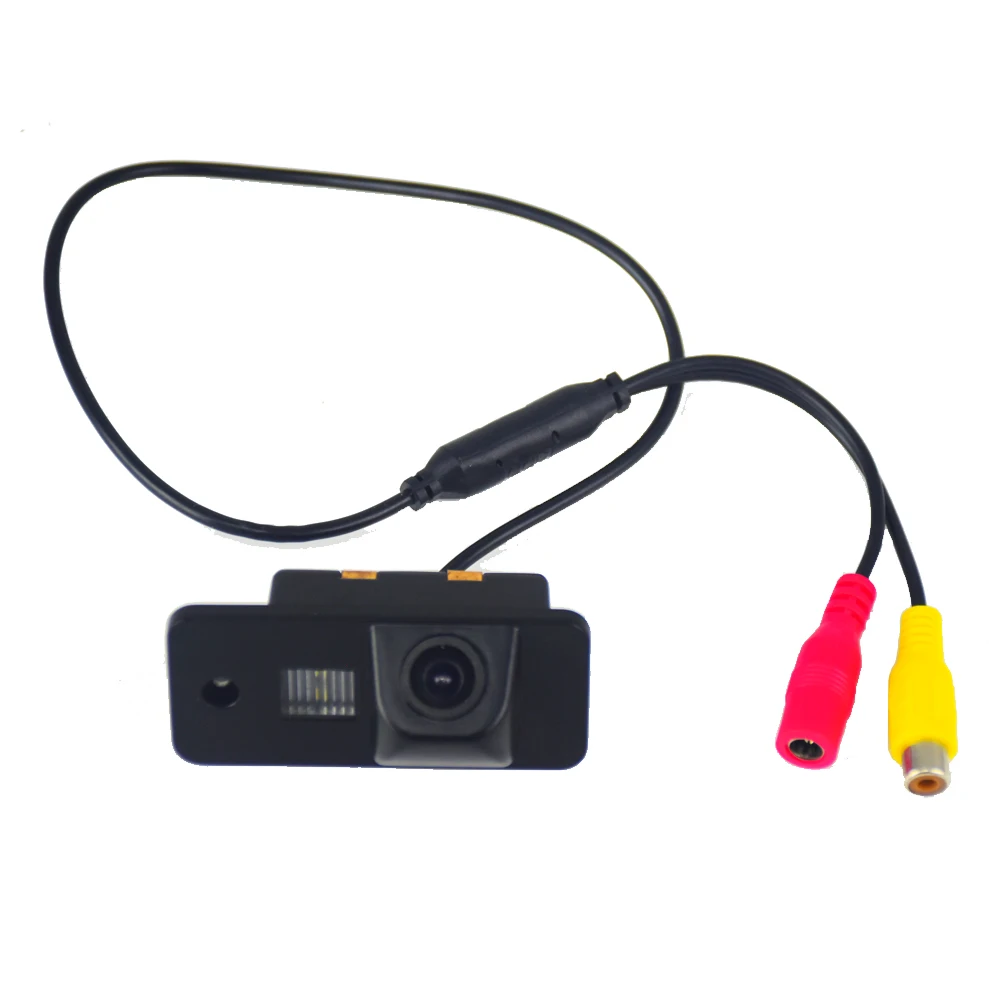

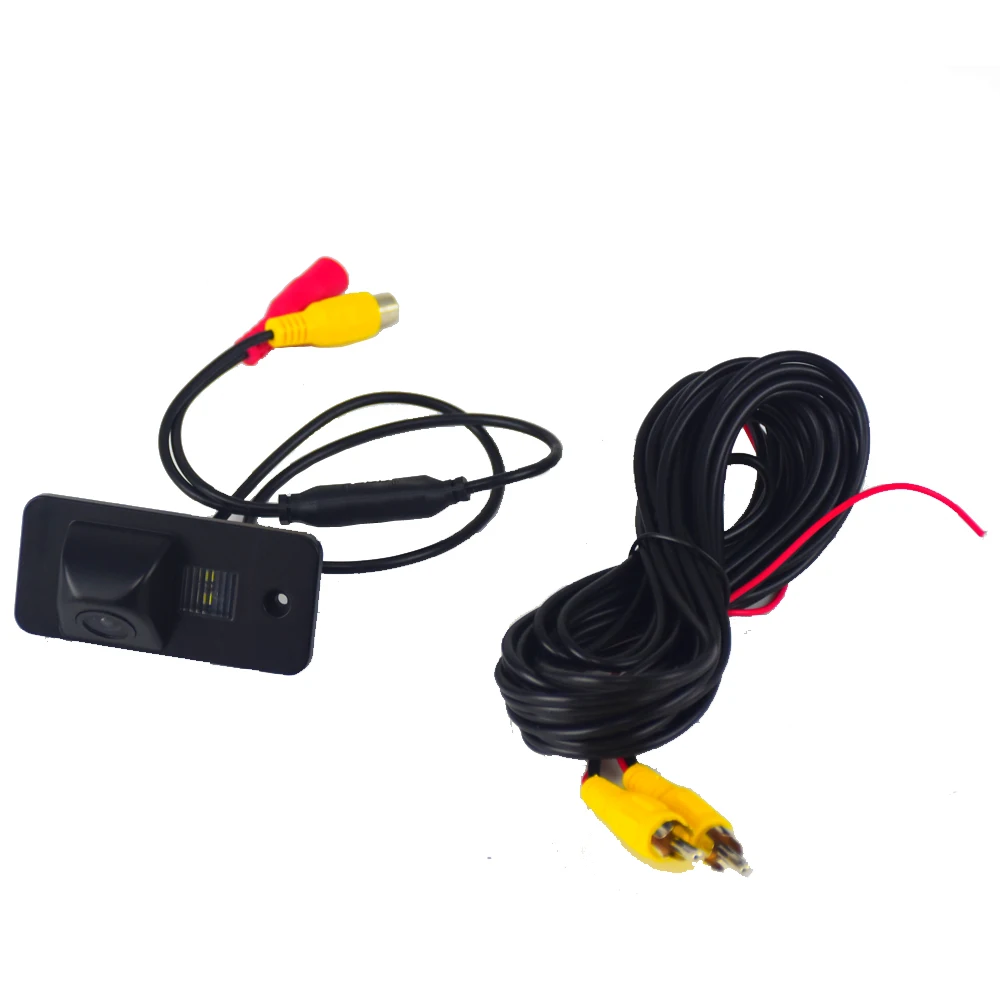

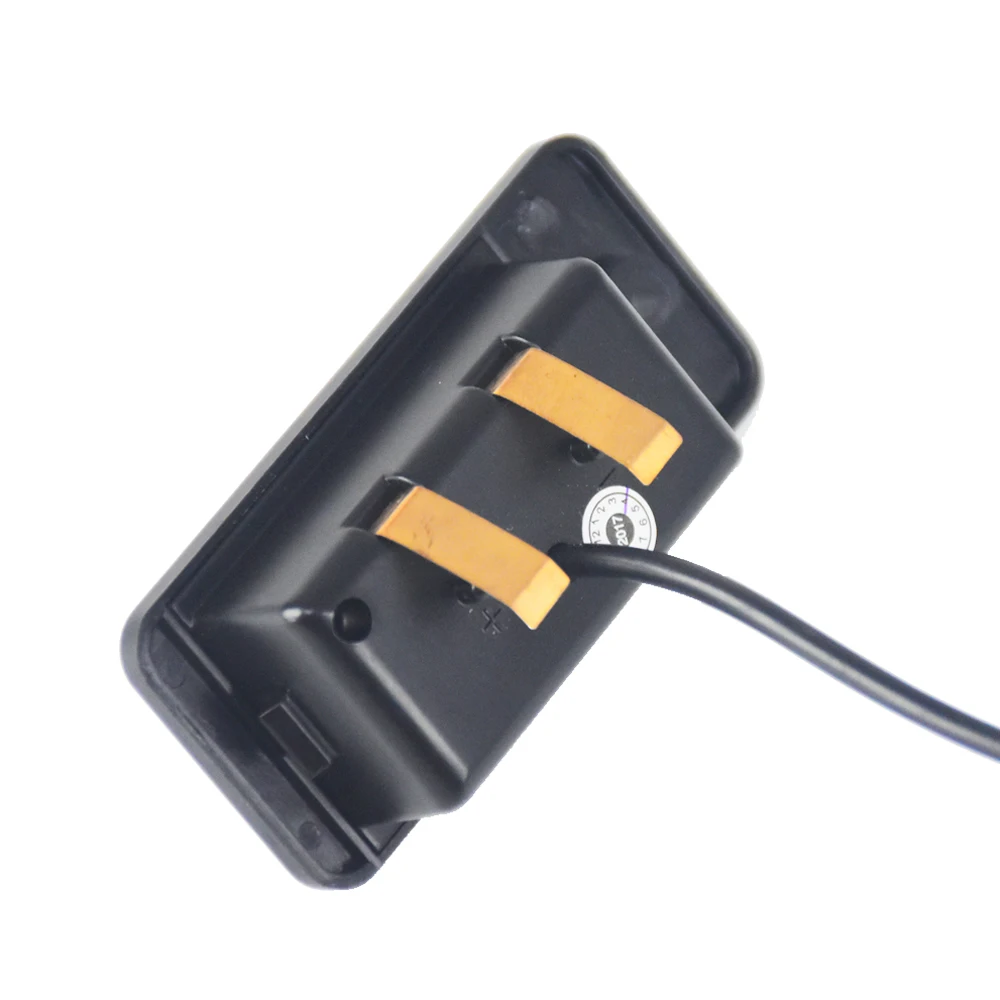

- 1 x CCD Car Rear View Camera

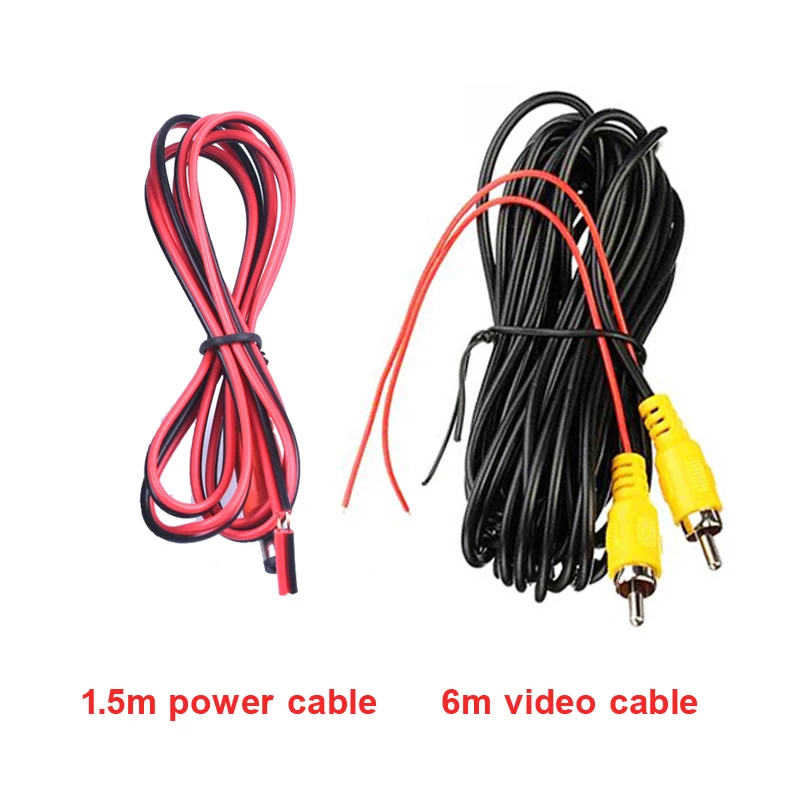

- 1 x Video cable
- 1 x Power supply cable
- Stock: In Stock
- Brand: Generic
- Model: Car Vehicle Rearview Camera For Audi A3 A4 A6 A8 Q5 Q7 A6L Backu
Product Views: 1367
$23.51
