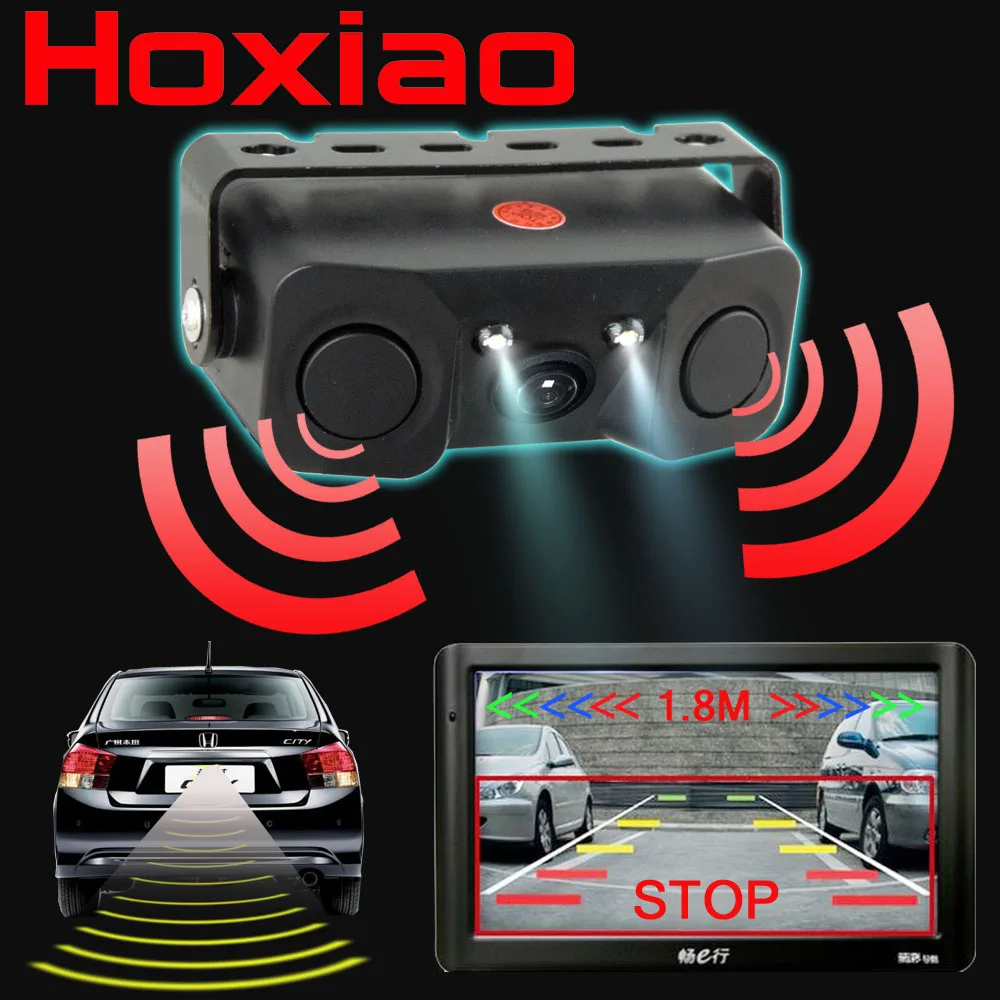

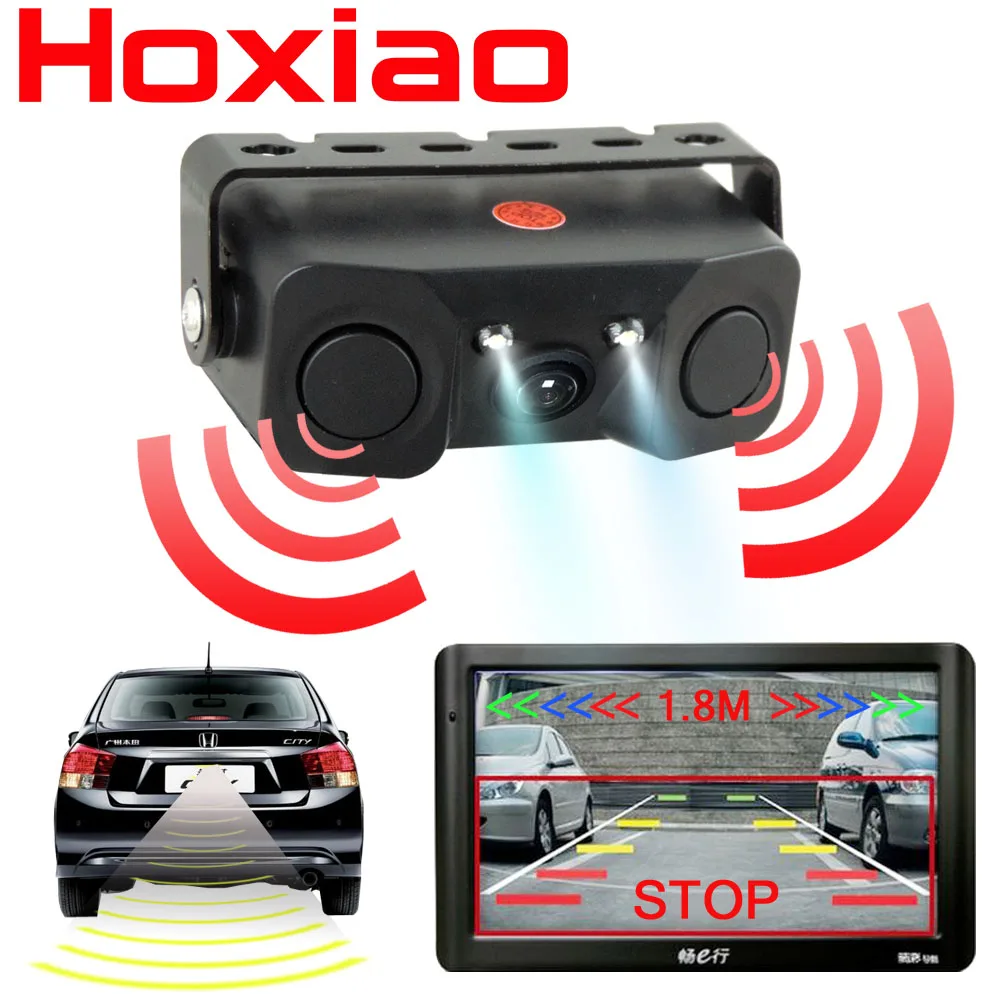

Car Rear View Camera Night Vision Led Light High Definition Rearview Vehicle Camera Add Reversing Detector Camera
Standard: one camera +6 m video cable +1.5 m DC power cord + installation accessories
Note: This product can access any monitor or navigation DVD player ...
Technical Parameters
Operating voltage: DC10V - 15V
Operating current: <= 150mA
Maximum power consumption: 150ma

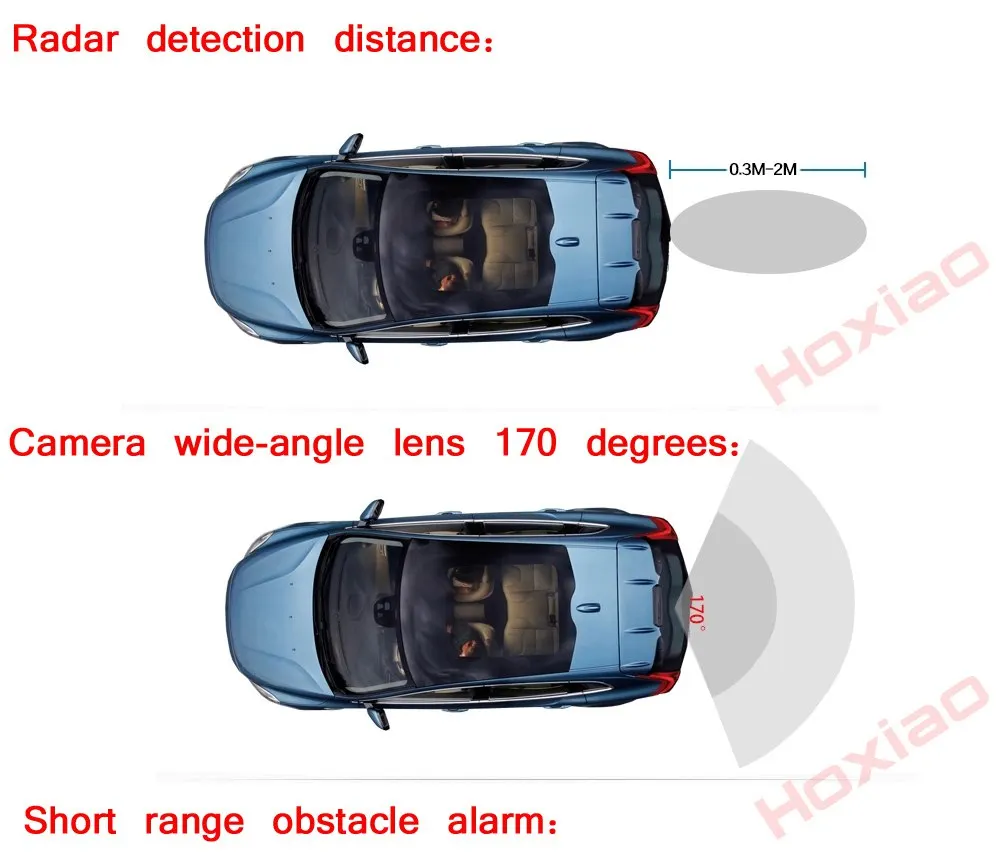

Maximum detection range: 2 meters
Minimum detection range: 0.2 m -0.3 m
Pixels: 720 * 480,
Minimum illumination: 0.1LUX
Standard system: NTSC / PAL

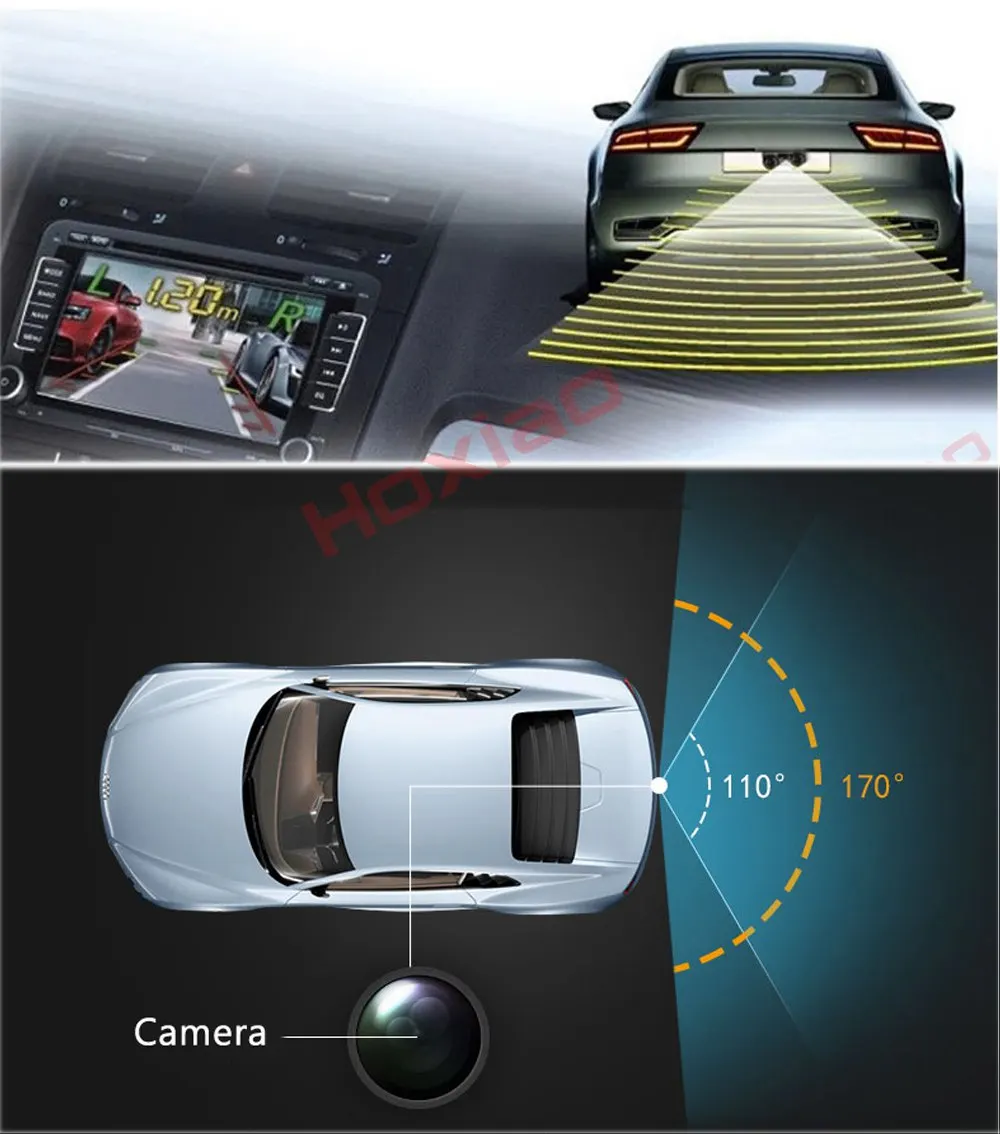

Lens angle: 170 degrees
Alarm volume: 85-105dB
Operating temperature: -30 degrees -80 degrees
Product Size: 62 * 30 * 25mm
Features:
Into the R file, the visual radar system automatically boot, a CPU anti-collision technology, anti-strong electromagnetic interference, to adapt to the wide temperature range of high-definition video, wide viewing angle, OSD color reversing scale line, low light visual, intelligent fill light correction, Alarm, all-weather work, moisture and moisture, dust and earthquake, hanging installation, nice. Distance in the image synchronization display, intuitive precision, multi-functional, universal design,
Applicable to most models, suitable for DVD players or a variety of other display with the use.
Instructions for use:

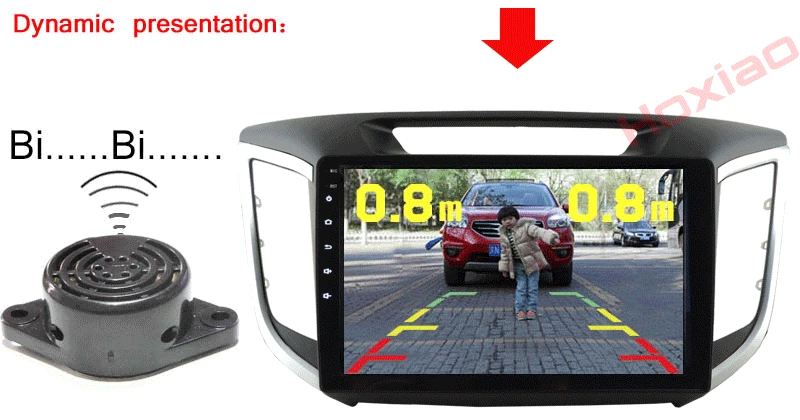

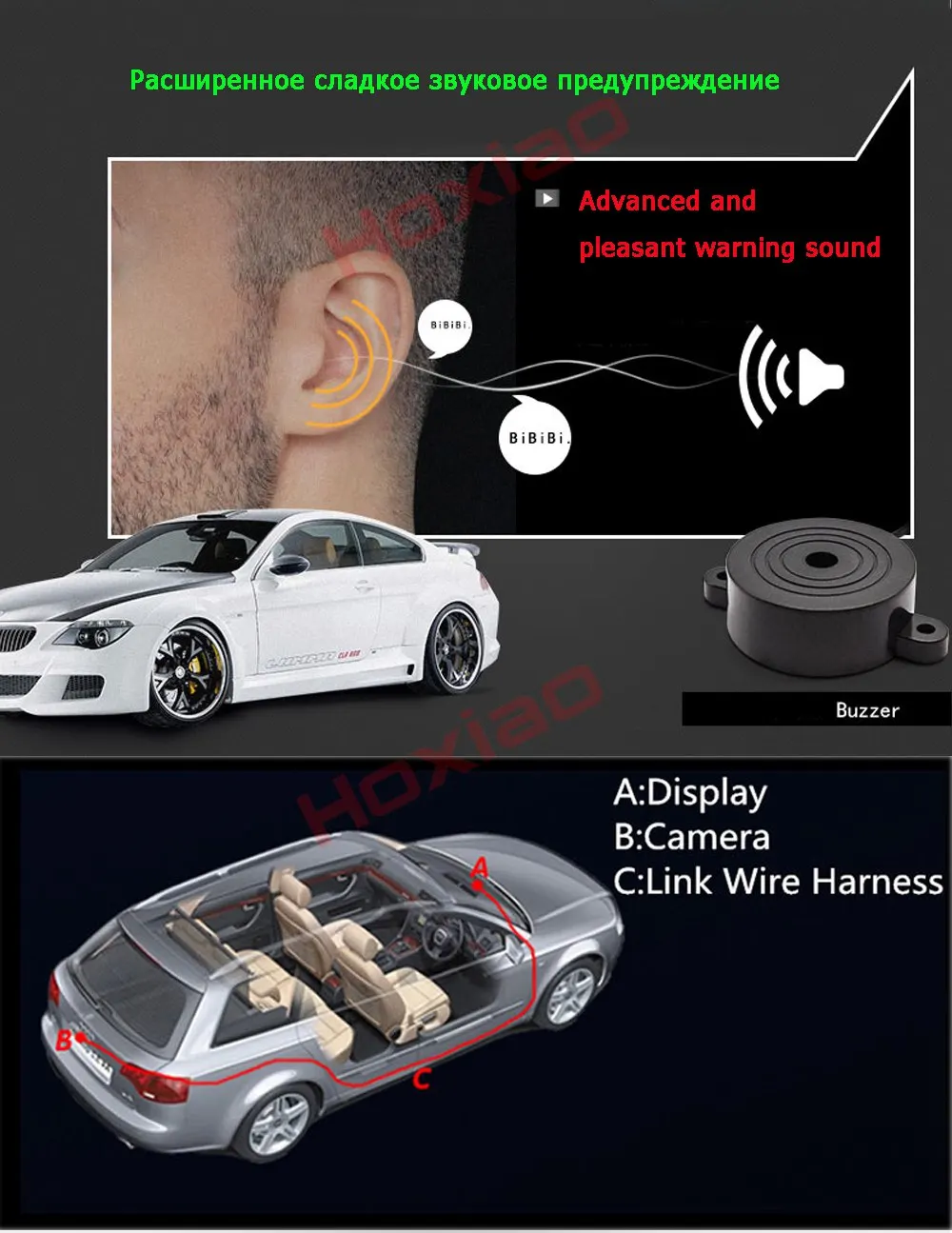

External buzzer, when the car into the distance of 1.2 meters, the buzzer began to alarm. When the car into the "R" file, reversing lights, visual radar system automatically boot.

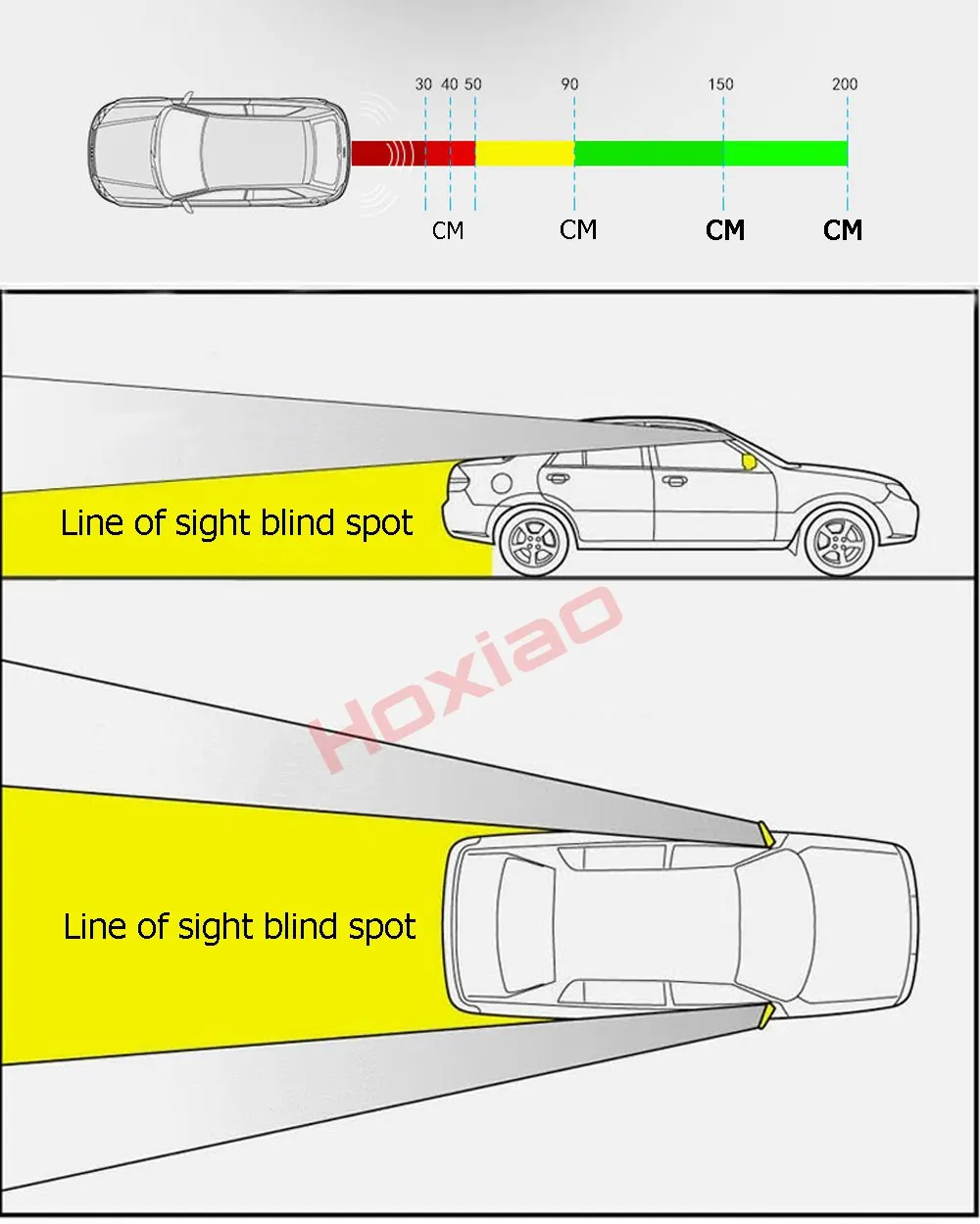

When the vehicle enters the obstacle 2 meters, the visual radar system begins to indicate the obstacle distance.
When the car into the distance of 1.2 meters, the buzzer began to alarm.

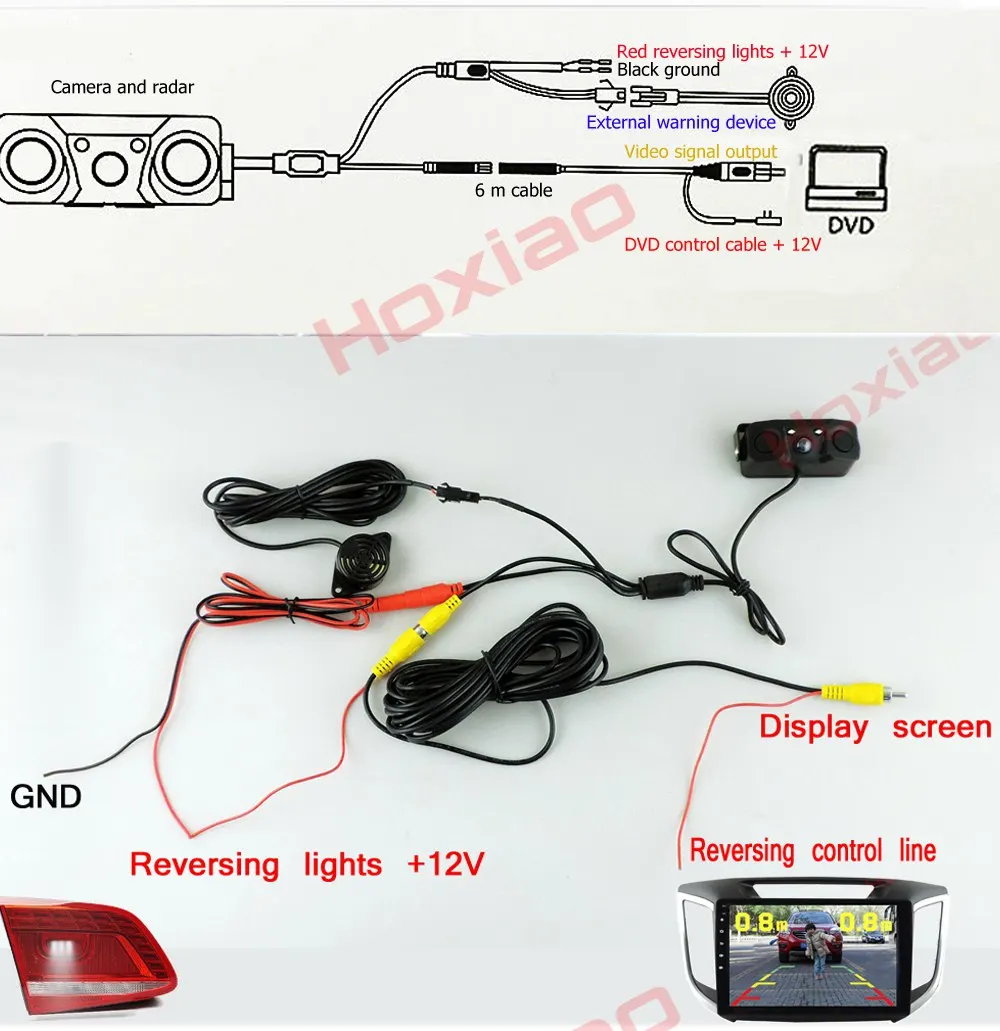

Installation is simple, directly into the DVD reversing video input interface can be.

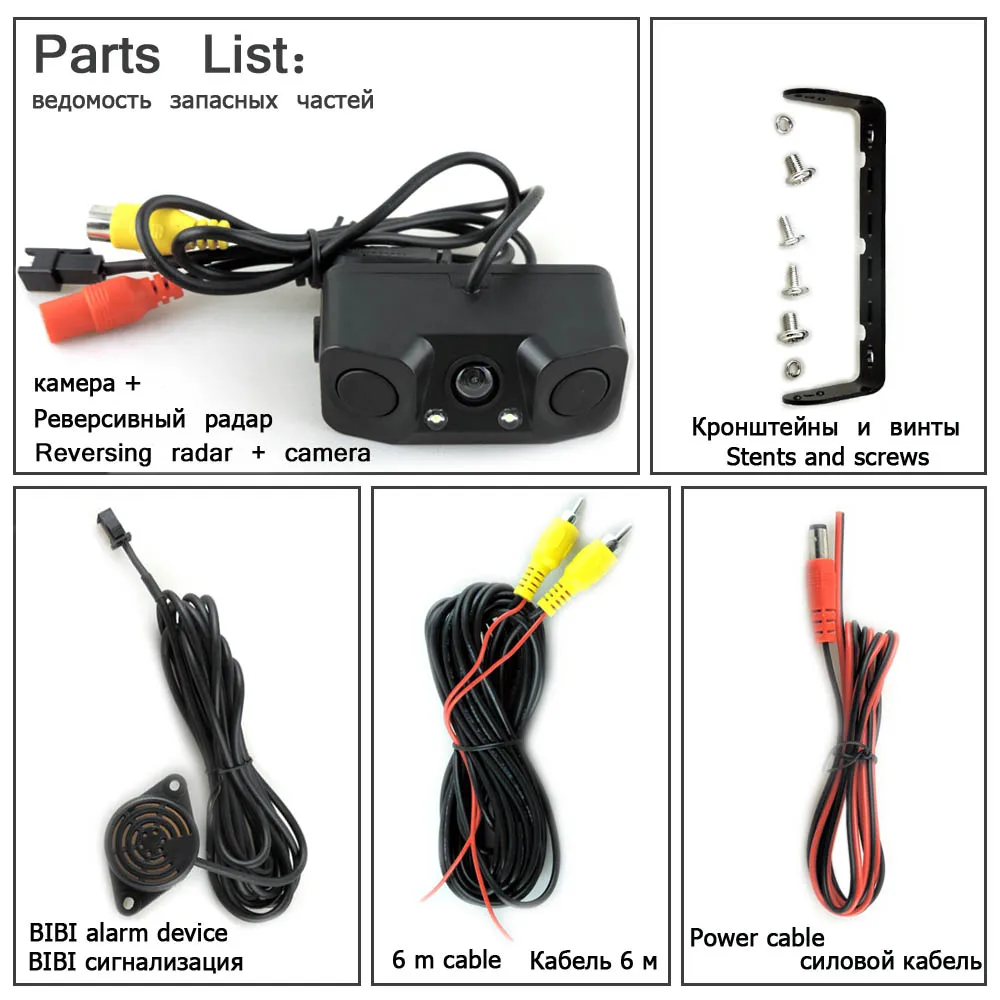

Standard configuration
Camera 1, 1 bracket, 6 m video cable 1, a power cord, buzzer 1, the installation of two screws, manual 1 this.
- Stock: In Stock
- Brand: Generic
- Model: Car Rear View Camera Night Vision Led Light High Definition Rear
